One Sydney Harbour Public Domain / Wulugul Walk

01. Role

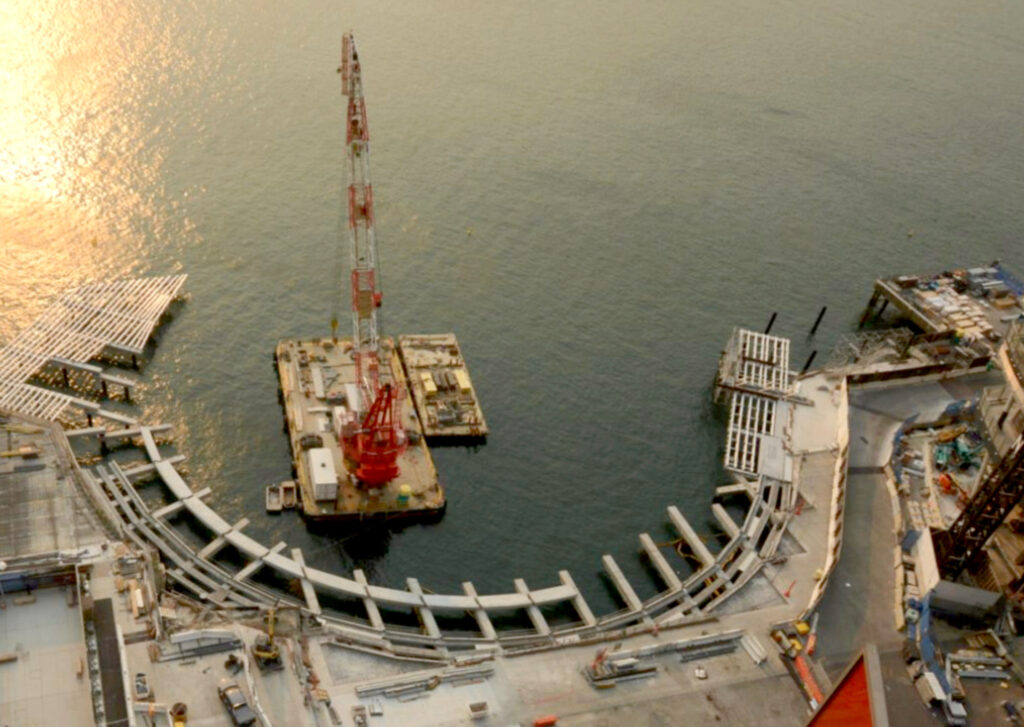

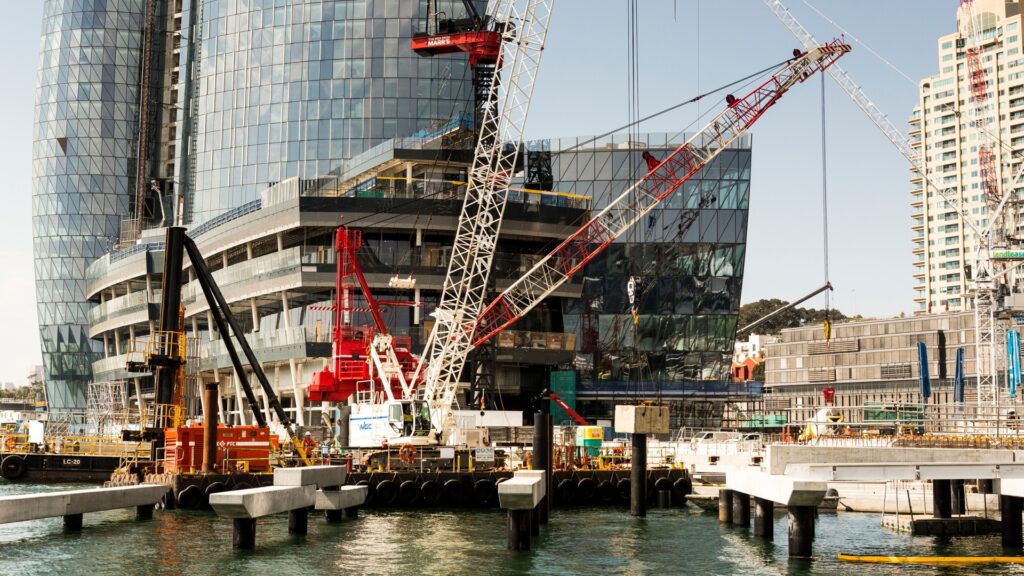

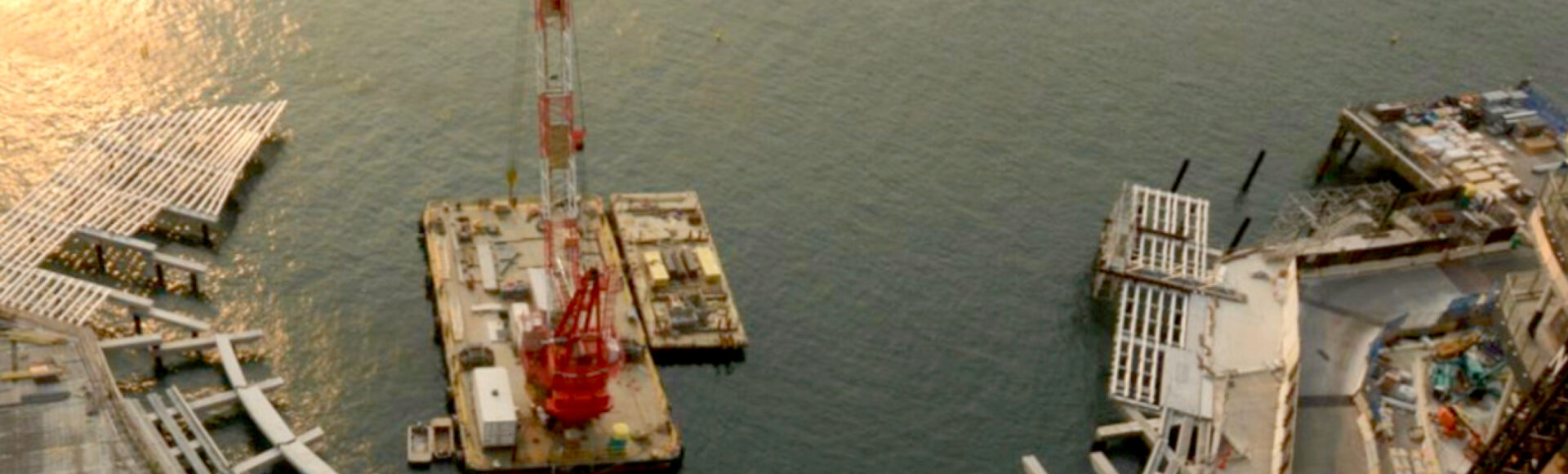

1. 135 x open-end steel tube piles installed within Sydney Harbour.
2. 63 x precast concrete headstocks installed on the piles.

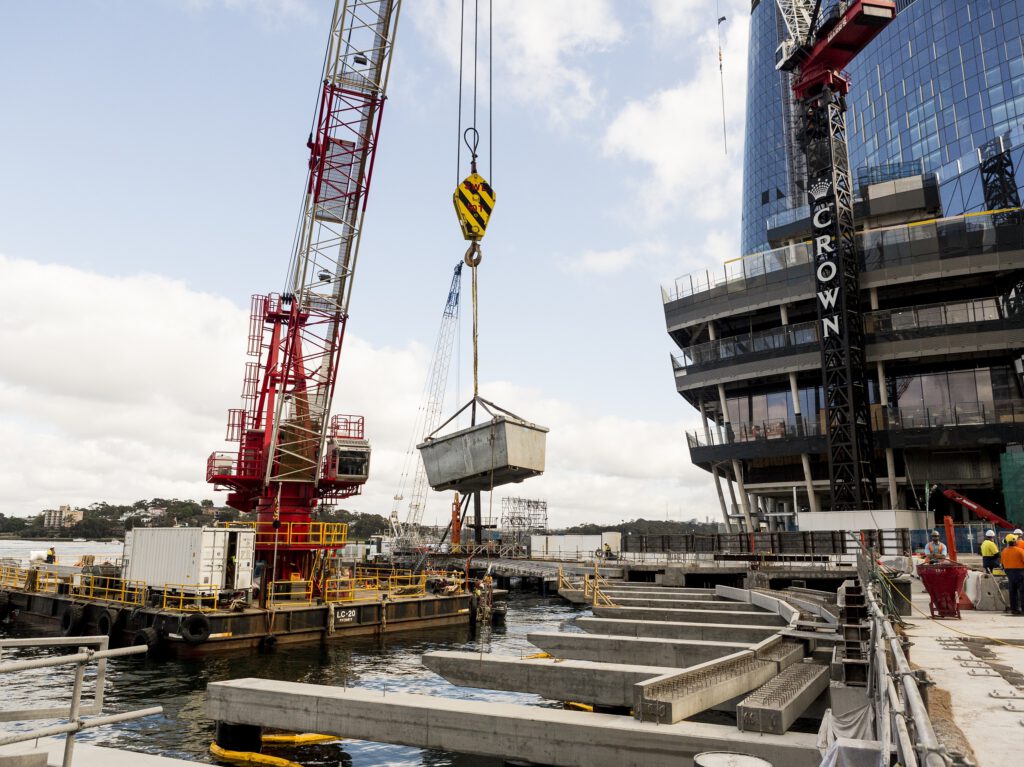

3. Spanning between the headstocks are approximately 300T of precast concrete beams and 80T of pre-fabricated aluminium modules.
4. The aluminium modules were finished with a recycled timber boardwalk and provision for future landscaping works.
5. A 100T floating steel pontoon & 10T steel gangway adjoins the boardwalk.

02. Timelapse
